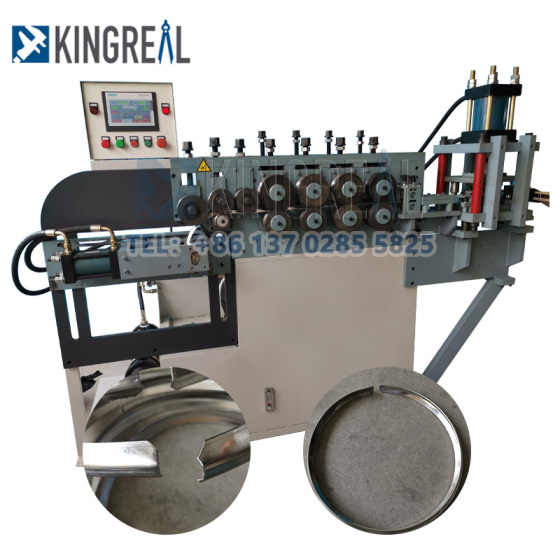

Barrel Hoop Lock Ring Roll Forming Machine
KINGREAL can provide both barrel hoop lock ring roll forming machine and the welding machine, which is a complete solution for the production of metal barrel hoops, capable of fully automated production.
- KINGREAL
- China
- 40 Days
- 9999
- Information
Barrel Hoop Locking Ring Roll Forming Machine
KINGREAL Barrel Hoop Lock Ring Roll Forming Machine is one of our best-selling items. The drum locking ring machine is capable of shaping raw material coils into a variety of shapes, including V and U shapes. The diameter of the product can be adjusted to meet customer needs.
KINGREAL adoption integrated computer control system, keep the locking ring roll forming machine is simple to operate. You just need to enter the specifications, and the machine will perform as needed. Moreover, the machine‘s superior hydraulic and electrical systems guarantee its longevity.
Technical Specification
| Coil Material | Galvanized steel |
| Coil Thickness Maximum | 0.7 mm |
| Production speed | Customized according to product requirements |
| Control system | PLC Control System |
| Power consumption | 380V 50Hz, 3-Phases, 2.2KW |

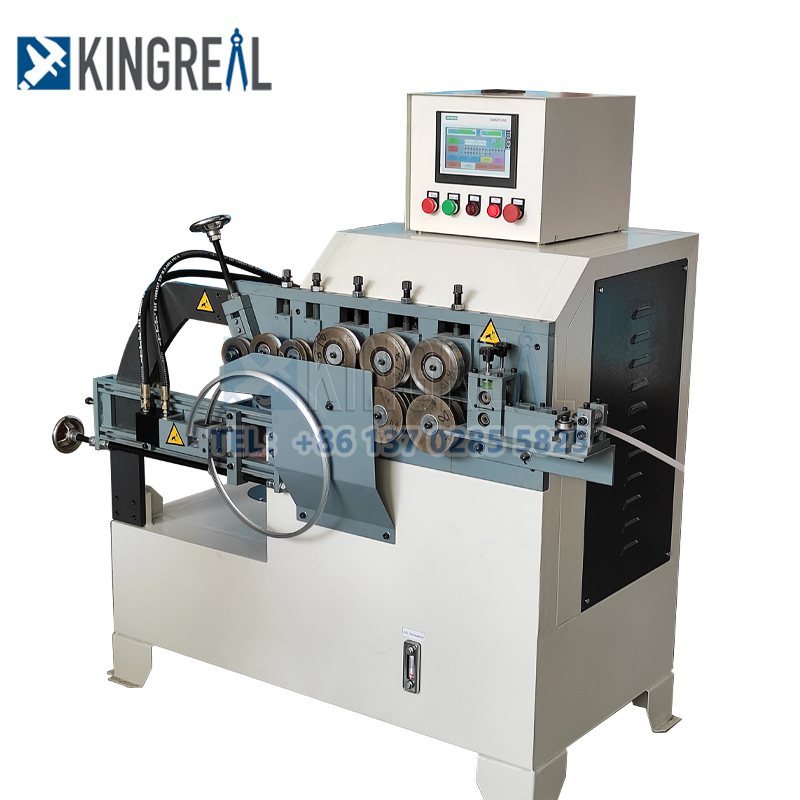

Main Roll Forming Machine Detail
Three sets of forming rollers and an automated burr-elimination system are included in the KINGREAL metal ring-making machine. It cuts goods to length using a hydraulic cutting system. We fitted it with a Siemens touch screen display, which makes operating the entire system simple for consumers.
To guarantee optimal performance, the axis is constructed with 40CR or 45# steel. More than 40 mm is the axis diameter, specifically designed for raw stainless steel. HRC55–58 is the hardness for gears. |  |

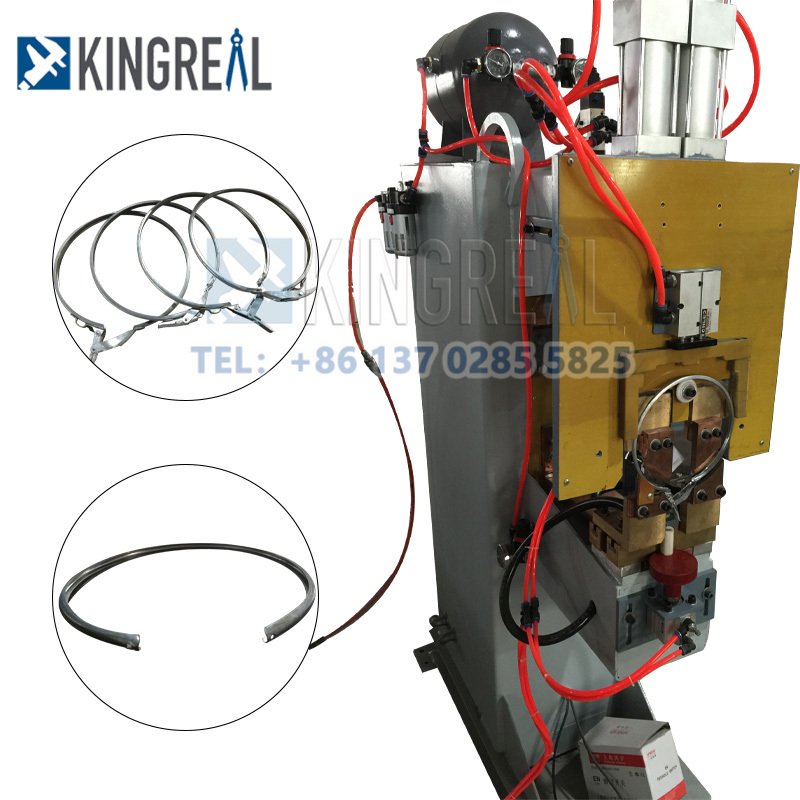

Welding Machine For The Drum Ring
 | Metal drum hooping machines require welders primarily for side seam welding of drums. During the manufacturing process, flat sheets of steel are rolled into cylindrical shapes and then joined at the edges by resistance welding techniques to form a hermetically sealed container. Welding is a critical step in ensuring the strength and sealing of a metal drum, which is why welders play a vital role in metal drum hooping machines. Resistance welding is an efficient and reliable method that provides an even, consistent weld in a short period of time, which is important for mass production of metal drums. In addition, the development of modern welding technology has made the welding process more precise and automated, resulting in increased productivity and product quality. |
| Model | KRACW-200 |
| Welding Cylinder | 80*60*60*60, 2 cylinders |
| Welding stroke height | 60mm |
| Welding capacity | 5 points welding for 2mm+2mm materials |
| Power consumption | 160KW, 380V/50Hz 2-Phase |
| Secondary Voltage | 13V |
| Machine Dimension | 1000*800*1950mm (L*W*H) |

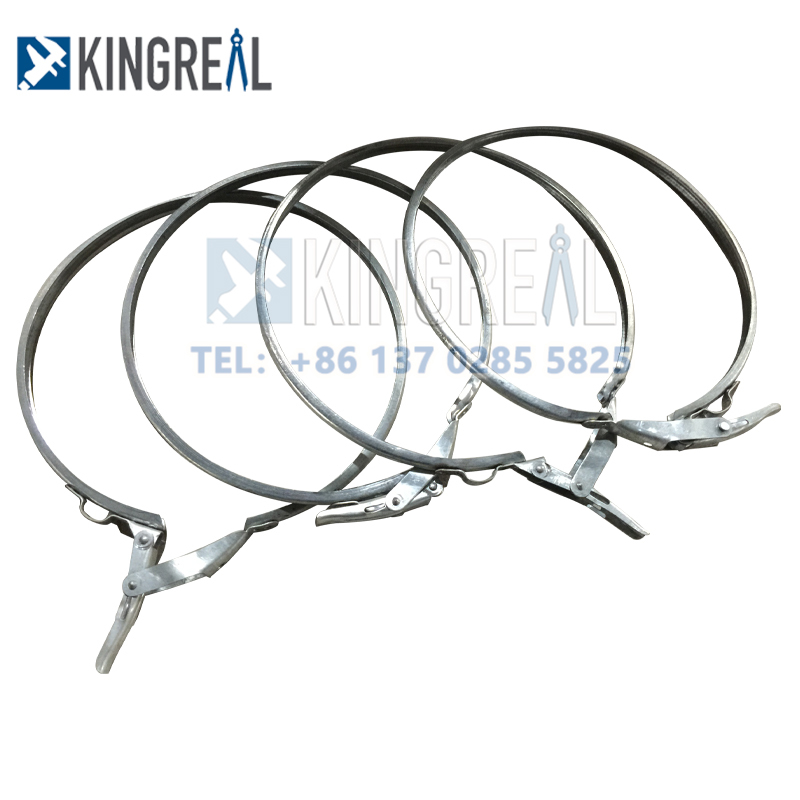

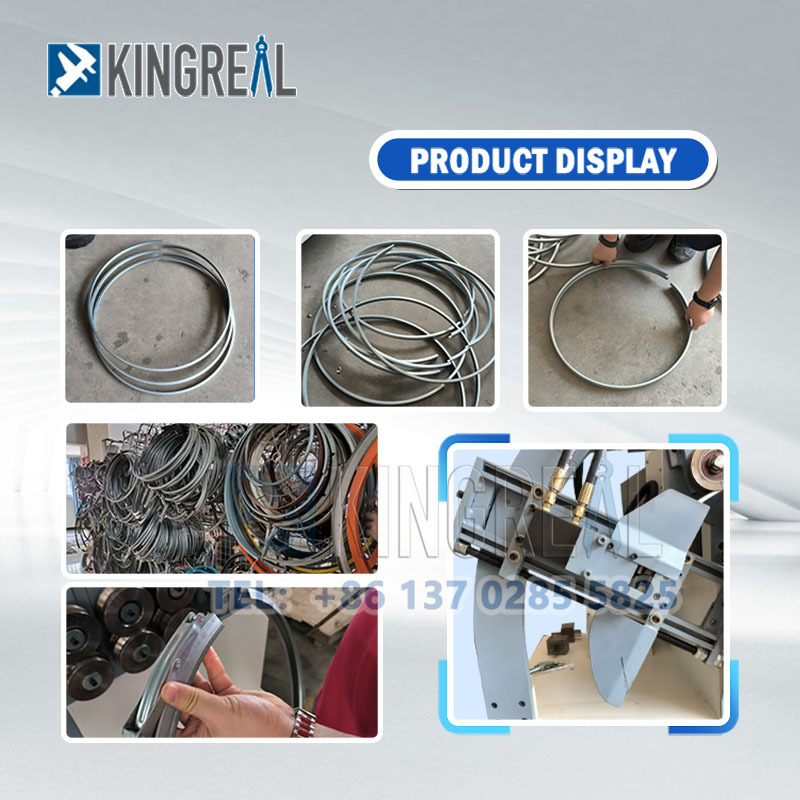

Drum Ring Product Display
