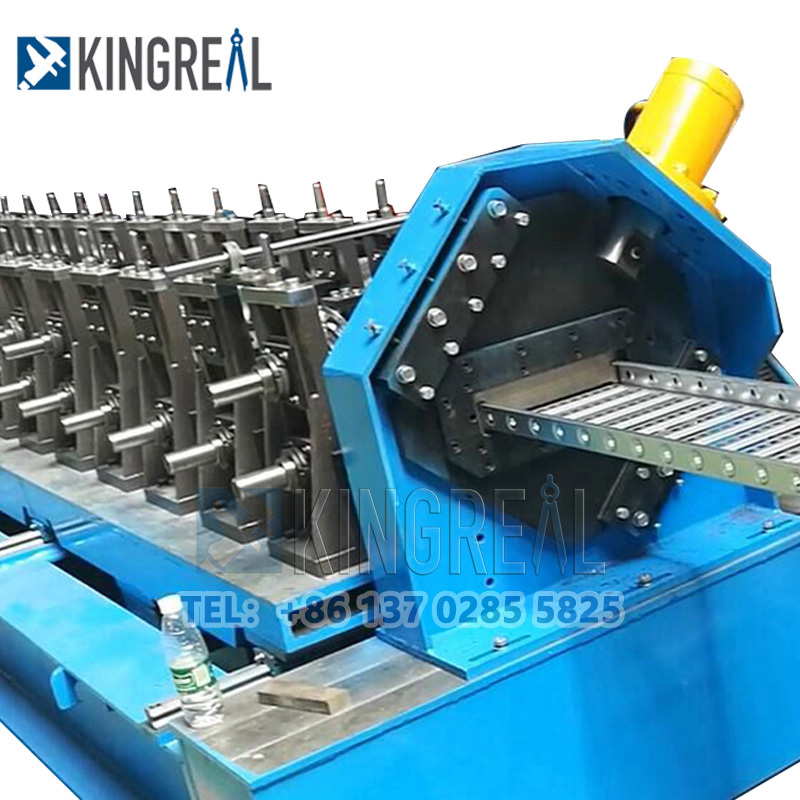

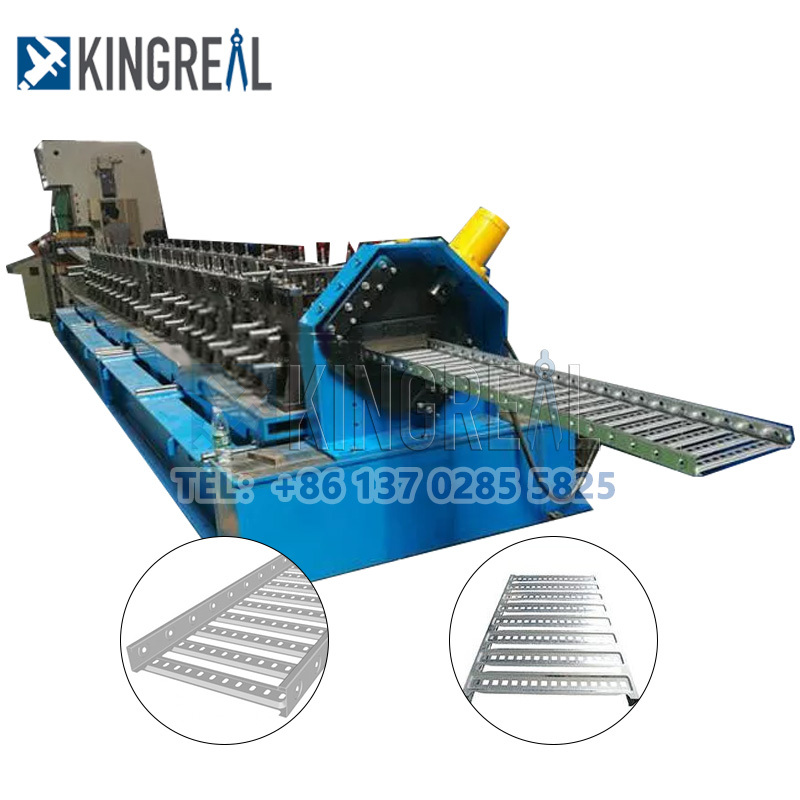

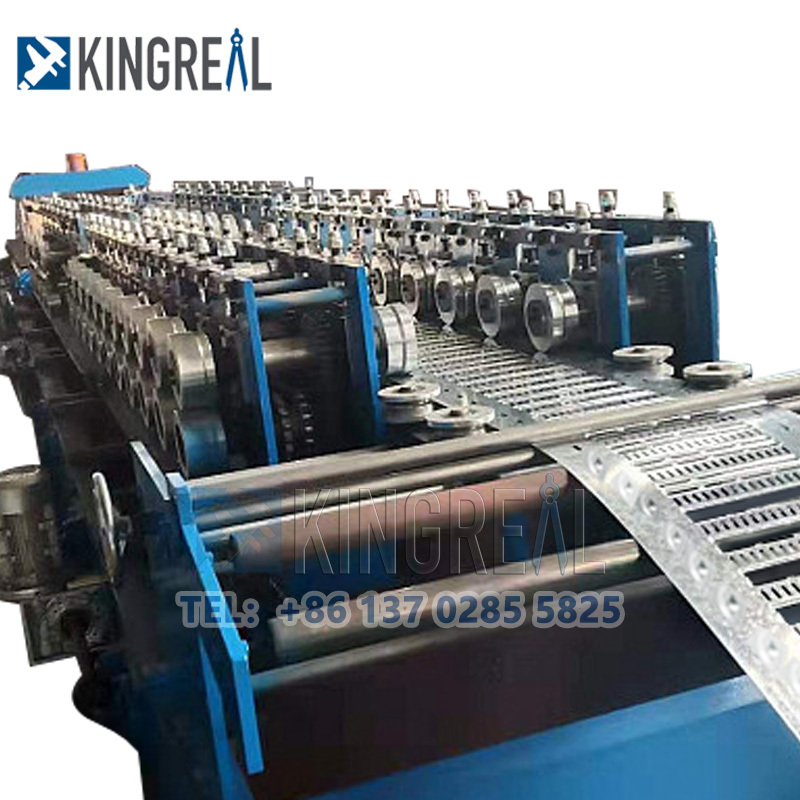

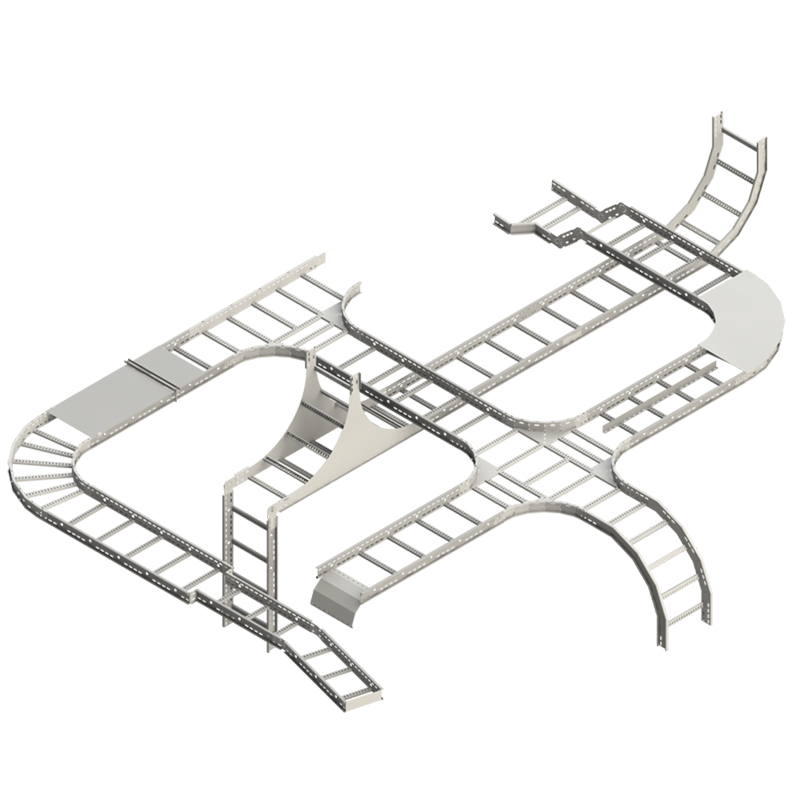

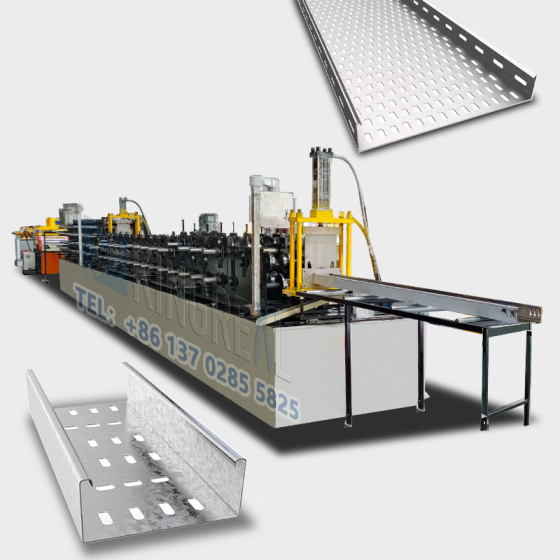

Cable Tray Ladder Roll Forming Machine

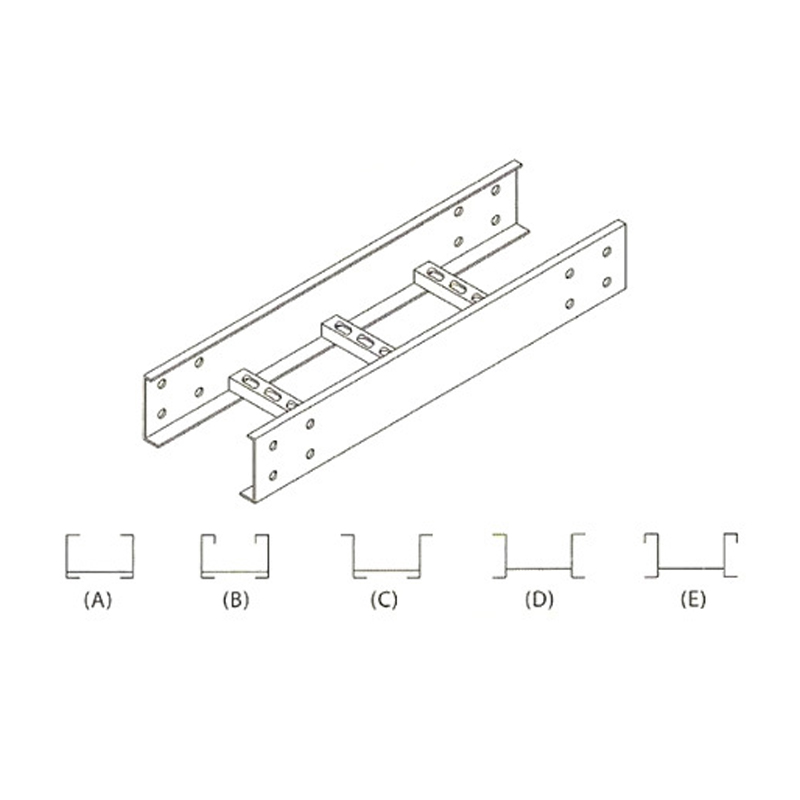

Cable Tray Ladder Roll Forming Machine can produce ladder-side bridges with four specifications of 100, 150, 200, and 250. The specifications of the ladder-side bridges produced can be adjusted freely by replacing the spacer sleeve of the roll.
- KINGREAL
- China
- 60 Days
- 9999
- Information
- Download

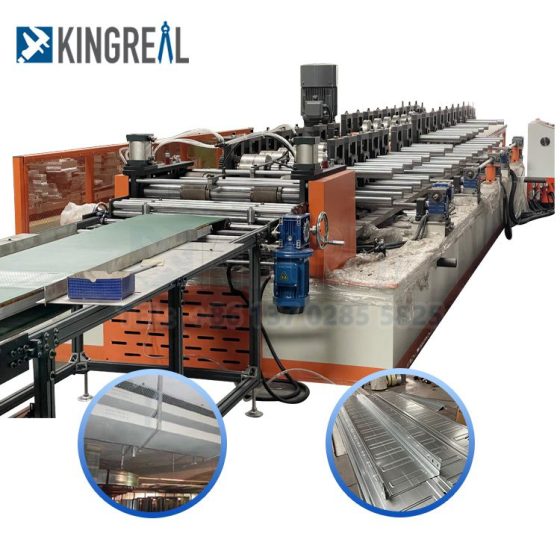

Cable Tray Ladder Roll Forming Machine Description
Cable Tray Ladder Production Line can produce ladder-side bridges with four specifications of 100, 150, 200, and 250. The specifications of the ladder-side bridges produced can be adjusted freely by replacing the spacer sleeve of the roll.
This production line is a special equipment for the production of one-time forming the cable trays, with servo feeding and online punching; the main machine is a combination and adjustable form, without changing the rolls, one set of rolls can complete the rolling of any specifications of the bridge profiles.
Cable Tray Ladder Roll Forming Machine Features
1. High Speed Cable Tray Ladder Making Macine
- Production speed during online punching: 4-6m/min.
- Continuous molding speed of molding equipment: 10-15m/min.
2. Humanized Design
- According to production needs, a variety of cable trays with a strip width of 200-1050mm can be rolled.
- Board material thickness: 0.8-2.0mm.
- Material requirements: Q235, galvanized steel strip, etc.
- The production line is divided into automatic and manual operation modes, which can realize linkage and segmented operation.
Structure of Cable Ladder Tray Making Machine
Feeding → Feeding calibration import → Leveling → Punching → Roll forming → Computer cut to length → Finished product support
Technical Specification Of Cable Tray Making Machine
Cable tray Width | the width of the plate is 100mm-800mm, the width is automatically adjusted by the motor guide rail, and the motor is adjusted to 0.75kw |
| Pressing thickness | 1.5-3mm, height: 100-200mm |
Working line speed | 0-12m/min. |
Number of rollers Sets | 20 Sets |
Roller materials | high-quality Gcr15 bearing steel, forged, quenched and tempered, and the surface is plated with hard chromium. |
| Axle material | 45# steel quenched and tempered, shaft diameter 90mm. |
| Main motor power | 22kw cycloid reducer, 1 set |
Transmission mode | gearbox universal joint transmission |
Number of universal joints | Model 160, 13 in total |
Cut off | hydraulically fixed. |
Motor power of hydraulic station | 7.5KW external installation |
Electronic control system | The whole machine adopts PLC frequency conversion control, the touch screen displays the value, and the Omron rotary encoder calculates the length. |
Voltage: | 380V, 5OHZ, 3 phase |
Equipment size: | about 16.8m*2.5m*1.2m |
Machine Power | ~ 35 KW |
Device Configuration
1. 10T hydraulic discharge rack, 1 towing trolley, 1 pair of flat scissors (front shear), 8 sets of beading sticks, 4 sets of punching dies, 1 set of forming host, 1 gear box, 1 electrical control system Sets, 2 1.5m finished product discharge stations
2. 1 set of PLC control box
3. 1 set of hydraulic pump station
4. Discharge table two

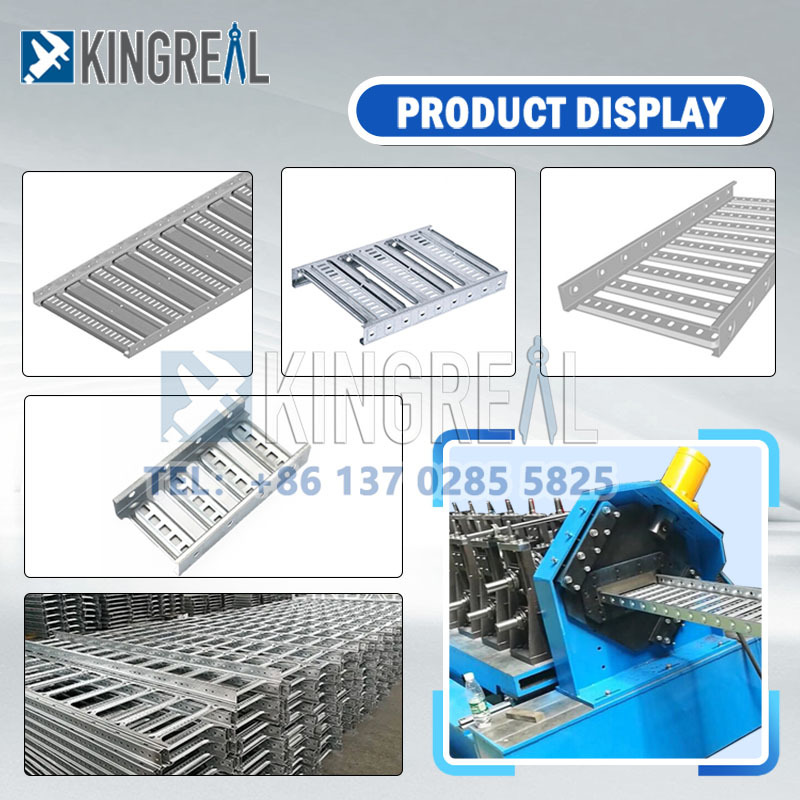

Cable Tray Machine Product Display
Quality Insurance
KINGREAL has passed ISO9000 certification and has the ability of ISO9000 quality system management. It has also passed the international CE certificate certification.
FAQ
1. Are you a manufacturer?
Yes, KINGREAL Machinery is a professional sheet metal processing machines manufacturer, we are an OEM.
We have been focusing on the field of machine manufacturing for more than 20 years.
2. How to visit your factory?
There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together.
3. What's your payment terms ？
40% deposit is paid before production, the balance paid after inspection confirmation before shipment.
4. Do you provide after-sales service?
We provide 24-hour online service for our customers.
A. We will debug the machines freely in our factory make sure everything is OK before shipment.
When engineer go to your place to debug the machines, all according expense shall be paid by you.
5. What can you do if the machine breaks down?
We will include some spare parts with the machine itself, if emergency we will send required parts by air to ensure problem solved quickly.
