Slotted Angle Making Machine
For cold bending heavy-duty shelves, supermarket shelves, storage shelves, and other profiles, KINGREAL Slotted Angle Making Machine and Shelf Roll Forming Machine are frequently utilized.
- KINGREAL
- China
- 60 Days
- 9999
- Information
- Download
Video Of Shelf Upright Rack System Machine
Slotted Angle Roll Forming Machine Description
The Slotted Angle Roll Forming Machine is a specialized machine used to produce metal slotted angle product with slotted holes. Slotted Angle is a material that is widely used in industrial and warehousing environments, often to build structures such as shelves, brackets and frames. Sheet metal (usually steel) is processed through a series of processes such as decoiler, punching press, forming and cutting into angle shapes with specific angles and slots.

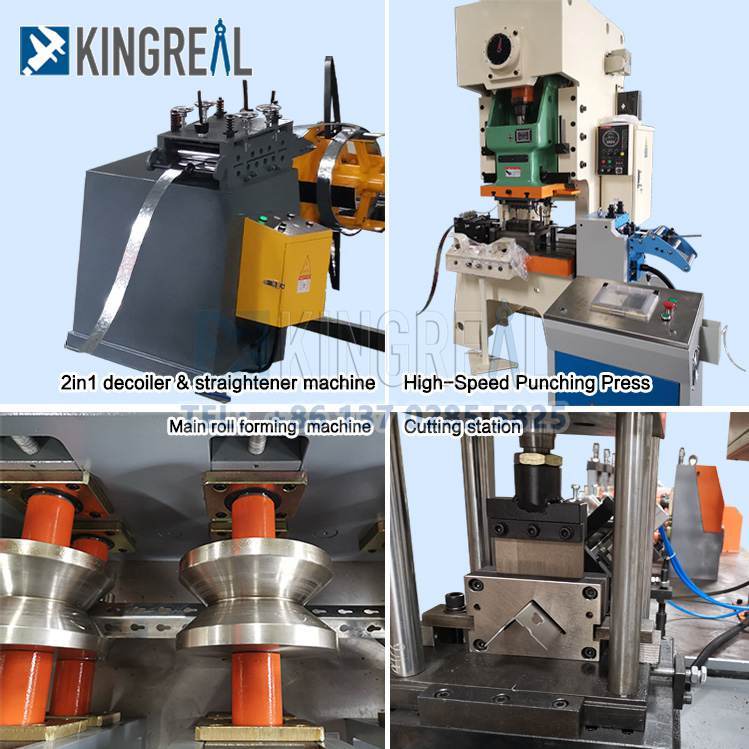

Working Process Of Slotted Angle Making Machine
Combine Decoiler And Straightener -- Punch Press Machine -- Main Roll Forming Machine -- Cutting Machine -- Output Table
Technical Specifictaion
| Roller stations | 16 roll forming stations |
| Rollers material | Adopt national standard Cr12 die steel |
| Heat treatment | The hardness of all roll molds after heat treatment reaches HRC=58-60º |
| Shaft metarial | 45# forging steel with chromium plate |
| Transfer method | Gear drive/ gearbox drive |
Thickness of the plate | 0.3mm-1mm |
| Working Speed | 40-60m/min |

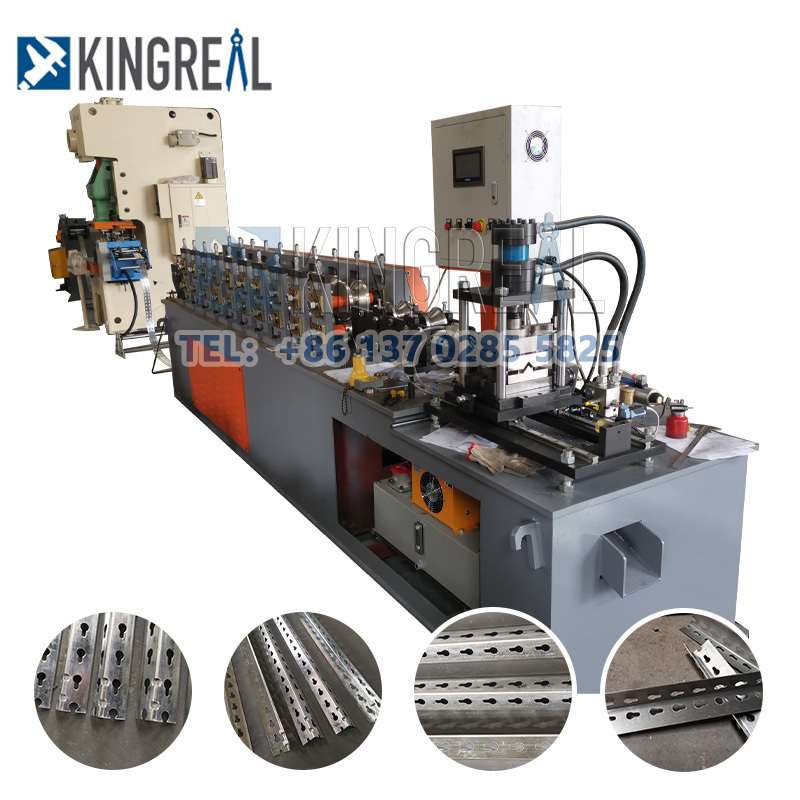

Slotted Angle Roll Forming Machine In Factory

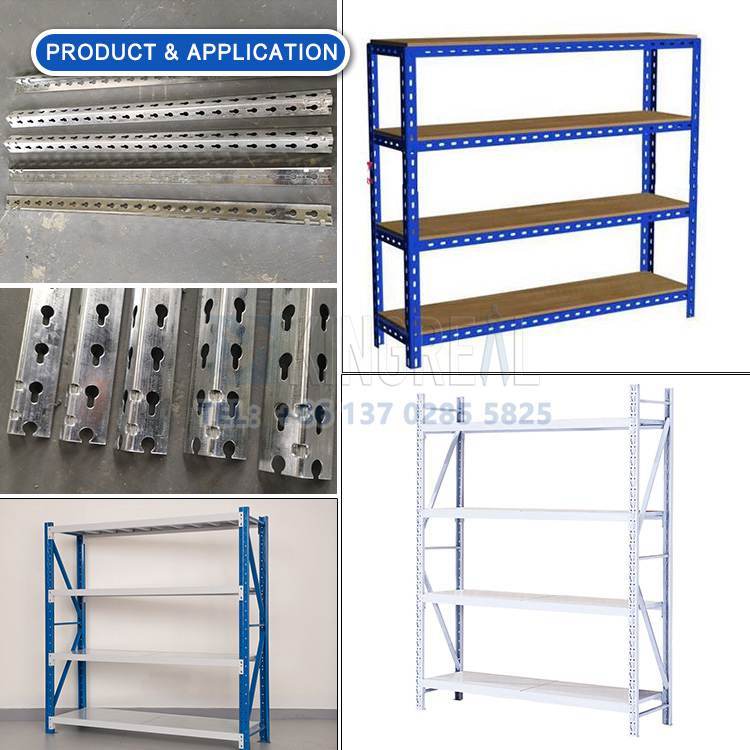

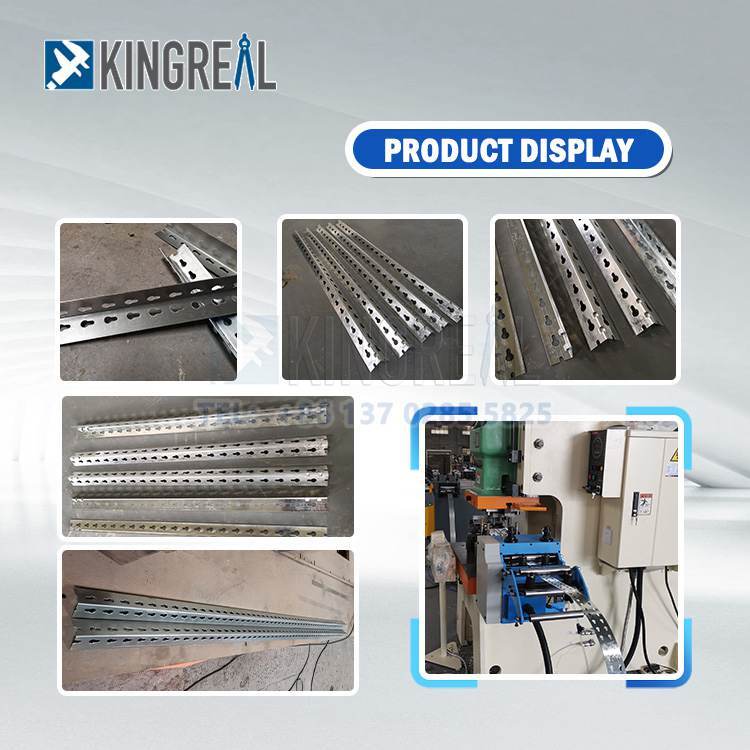

Final Product Display
